High-quality reinforced bicycle hydraulic brake hose, ideal for custom brake hose assemblies, replacement hoses and workshop servicing.

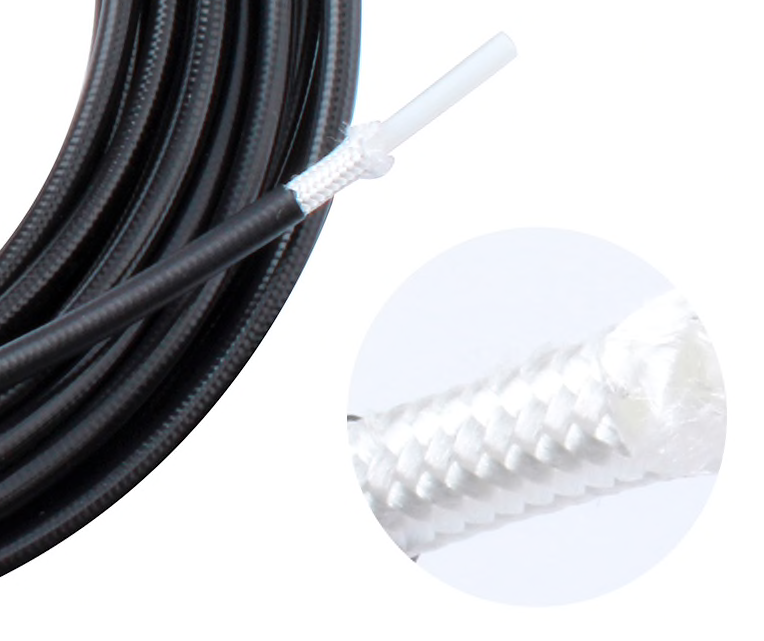

Constructed with a durable nylon outer layer, braided yarn reinforcement and PBT inner tube, providing a strong yet flexible hose designed for bicycle hydraulic braking systems.
Available in three ID/OD combinations to suit a wide range of MTB, e-MTB, gravel and road bike applications.
IMPORTANT: This hose is for MINERAL OIL brake systems only. Not suitable for DOT brake fluid.
Available Sizes
2.0mm ID × 5.0mm OD
2.2mm ID × 5.0mm OD
2.5mm ID × 5.4mm OD
Sold Per Metre
Price is for 1 metre of continuous hose.
Multiple quantities will be supplied as one continuous length.
Quantity 1 = 1 metre
Quantity 2 = 2 metres
Quantity 3 = 3 metres, etc.
Features
Mineral oil compatible
Nylon outer construction
Braided yarn reinforcement
PBT inner tube
Strong yet flexible
Designed for bicycle hydraulic brake systems
Three ID/OD combinations available
Suitable for custom and replacement brake hose assemblies
Suitable for MTB, e-MTB, gravel and road applications
Cut to your required length
Sold per continuous metre
Selecting the Correct Hose
Hydraulic brake systems use different hose diameters, barbs, olives, compression fittings and connection systems.
Both our 2.0 × 5.0mm and 2.2 × 5.0mm hoses have a 5.0mm outside diameter but different internal bore sizes, so they require appropriately sized barbs and fittings.
The 2.5 × 5.4mm option requires fittings suitable for the larger hose dimensions.
Always check your existing brake system and fittings before ordering.
Important
MINERAL OIL ONLY – NOT SUITABLE FOR DOT BRAKE FLUID.
Hydraulic brakes are a safety-critical component. Correct fittings must be used for both the selected hose size and brake system, and installation, cutting and bleeding should be carried out correctly.
Package Includes
1 × Selected Hydraulic Brake Hose – supplied per metre
Select your required hose size and quantity when ordering.
TB Tech Tip: Don’t select a brake hose from its outside diameter alone. The ID and OD both matter — the barb needs to correctly match the internal bore, while the olive and compression hardware need to match the outside diameter and brake connection.
